• 25 PPM / 50 IPM Duplex Scanner • 50 Sheet ADF Capacity • Support long paper size scan up to 14" • Scan to Searchable PDF • A3-Size Document scan available • Single-Touch Function Buttons - Scan, OCR, Copy, Email, PDF and Custom • TWAIN and WIA Drivers - Allows Full Document Management Solutions Implementations
Specification
Image Sensor
CIS x 2
Optical Resolution
600 dpi
Hardware Resolution
600 x 600 dpi
ADF Capacity
1. 50 sheets (A4/ Letter, 70 g/m2 or 18 Lbs), Max. thickness under 5mm (0.2").
2. 20 sheets (Business Cards).
3. Plastic Card, Max. thickness under 1.2 mm.
Note: Maximum ADF capacity varies, depending upon paper weight.
Scanning Speed ( ADF )
25 ppm/ 50 ipm (Grayscale mode, 200 dpi, A4 Portrait) 25 ppm/ 50 ipm (B&W mode, 200 dpi, A4 Portrait) 8 ppm/ 8 ipm (Color mode, 200 dpi, A4 Portrait) Note: Results may vary depending upon your scanning application, computer processor and system memory.
Scanning Area (W x L)
Max. 216 x 356 mm (8.5" x 14") Min. 13.2 x 13.2 mm (0.52" x 0.52")
Acceptable Paper Sizes
(W x L)
Max. 220 x 356 mm (8.66" x 14") Min. 50.8 x 50.8 mm (2" x 2")
Acceptable Paper Weight (Thickness)
50 to 105 g/m2 (14 to 28 Lbs)
Daily Duty Scan
( Sheets )
1,500
Action Button
Scan, PDF, OCR, File, E-Mail, Copy, BCR, FTP. All Customizable.
Power Supply
24 Vdc/ 0.75 A
Interface
USB 2.0
Net Weight
1.66 Kgs (3.66 Lbs)
Dimensions (W x D x H)
263 x 127.5 x 148 mm (10.36" x 5.02" x 5.83")
Protocol
TWAIN Compliant
OS
Windows 2000 / XP / Vista / 7
Bundled Software
Plustek DocAction Plustek DI Capture ABBYY FineReader Sprint Plus Plustek DI Express (SC/TC/JP/KR) Hotcard BizCard Finder
• Terebint
Bt. 1103 Budapest, Noszlopy u. 27. D4. • Tel: 30-478-0307, 261-6549 •
•
• Terebint
Bt. 1103 Budapest, Noszlopy u. 27. D4. • Tel: 30-478-0307, 261-6549 •
•

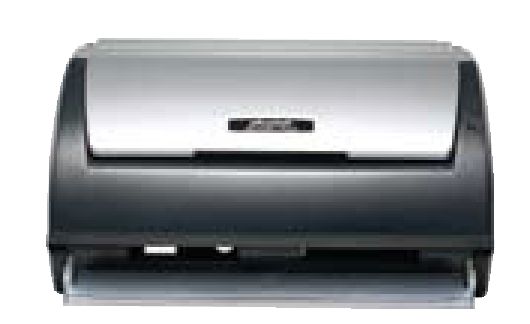

PS286 Plus
